Welcome to our blog, where we explore innovative solutions in structural engineering. Today, we’re diving into the importance of considering overlapping in concrete volume calculations and how it can significantly enhance accuracy in structural design software.
Body/Section #
In concrete construction, overlapping refers to the intentional extension of reinforcement bars (rebars) or structural elements beyond their meeting points. This practice ensures continuity and structural integrity within the concrete elements. Overlapping plays a vital role in:
- Structural Integrity
By providing a continuous reinforcement path, overlapping enhances the structural integrity of concrete elements such as beams, columns, and slabs.
- Load transfer
It facilitates efficient transfer of loads between different structural members, ensuring even distribution of forces throughout the structure.
- Crack Control
Overlapping helps in controlling and mitigating cracks that may develop in concrete structures over time, thereby enhancing durability.

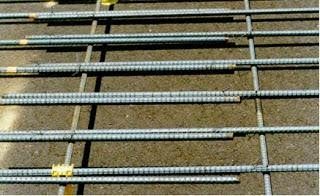

Figure 1: Steel bar lapping in construction
- Anchorage
Proper overlapping ensures secure anchorage of reinforcement bars within the concrete, essential for resisting tensile forces.
- Construction Joints
Overlapping at construction joints ensures continuity and strength between different concrete placements, preventing weak points.
Importance of Overlapping Consideration in Structural Software #
In structural design software, accurately representing the relationship between concrete elements is crucial for precise volume calculations. Specifically, when slabs are inserted halfway into beams, it impacts the effective dimensions for concrete volume calculations.
Enhancing Accuracy and Efficiency #
Considering overlapping in concrete volume calculations leads to:
- Precision: Accurate estimates of concrete volumes aid in budgeting, resource allocation, and project planning.
- Optimization: By optimizing material usage and reducing waste, projects become more cost-effective.
- Efficiency: Streamlined calculation processes save time and minimize manual errors, enhancing overall project efficiency.

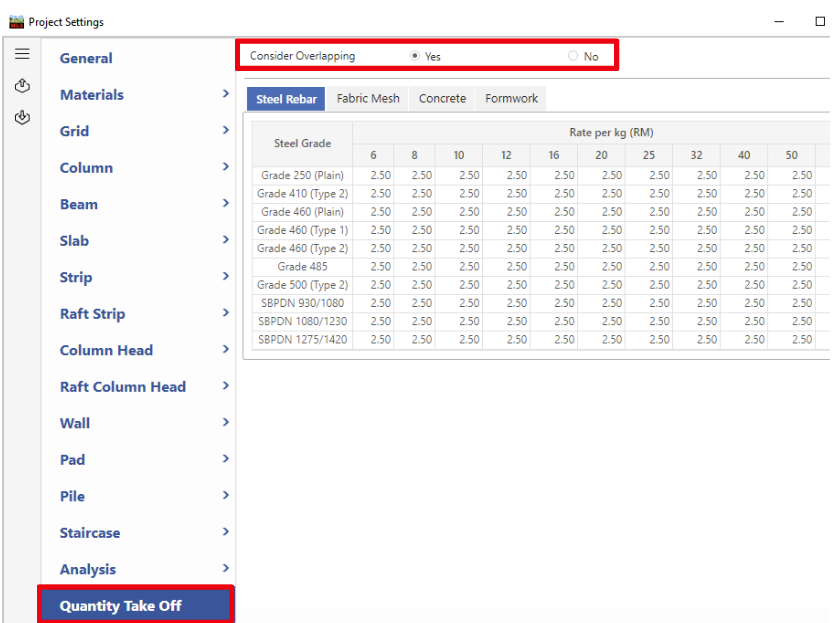

Figure 2: Quantity Take Off Project Settings
- The overlapping feature can be assessed within the project settings and quantity take-off. Additionally, there is an option to select to consider overlapping, which will be reflected in the Bill of Quantities.
Conclusion #
Incorporating overlapping consideration in structural design software is essential for achieving accurate concrete volume calculations. This practice ensures structural integrity, durability, and cost-effectiveness in concrete construction projects.
